2.5G L2 Managed Industrial PoE Network Switch Support ERPS MSTP Ring Din Rail

Product Categories
Shenzhen Olycom Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

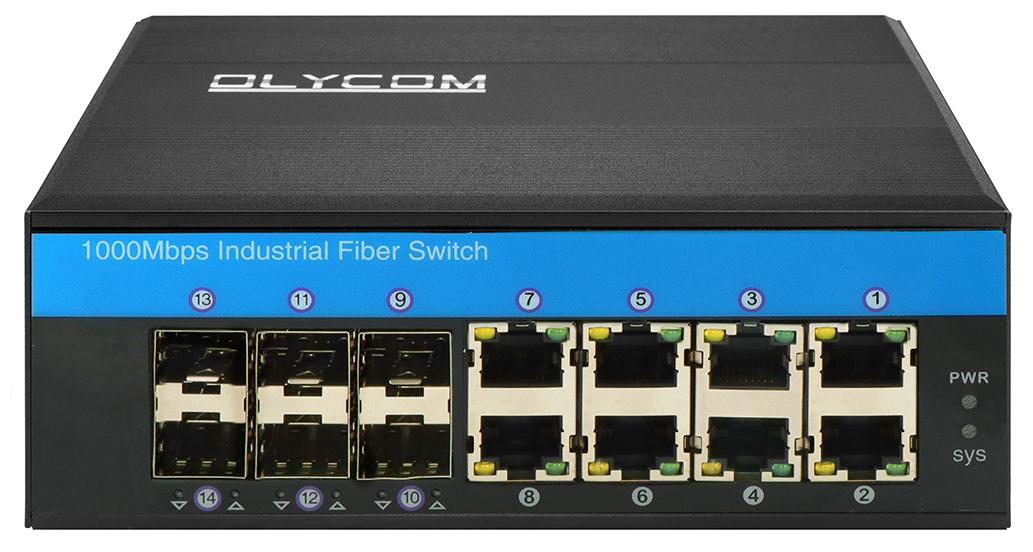

2.5G L2 Managed Industrial PoE Network Switch Support ERPS MSTP Ring Din Rail

  • 1
  • 2
  • 3

Brand Name : Olycom

Model Number : IM-FP688GW V1

Certification : CE RoHS FCC ISO9001

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : Negotiable

Payment Terms : L/C, PayPal

Supply Ability : 2000pcs/month

Delivery Time : 4~7 working days

Packaging Details : 1pc in a carton, 0.9kg gross weight

Product name : Industrial managed POE switch

Speed : 1.25Gbps

POE budget : 240W

Voltage input : DC48V

Warranty : 3 years

Dimension : 15.8*11.5*6cm

Contact Now

Smart Managed PoE Industrial Gigabit Switch

Key Features of 8 port PoE fiber switch

  • IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports, support Auto MDI/MDIX
  • 6 x 100/1000/2500Mbps SFP fiber port
  • Din rail or wall mounting
  • A store-and-forward switching mechanism
  • Operating environment temperature: -40 ° ~75 °C
Specification of Industrial POE switch
Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch (6F+8TP)
Port

6x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km

MM:1310nm, 2Km; 850nm, 500-meter

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: storage and forward

System bandwidth: 56Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V(max 57V)

Single PoE power supply output power: 15.4W/30W (port 1~8)
Environment

Working temperature: -40°～ 75°C

Storage temperature: -40°～ 85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Safety CE Mark, commercial ; CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 115x 60mm;

Mounting method: Din-rail mounting
Warranty Replacement within 1 year; 3 years repairing

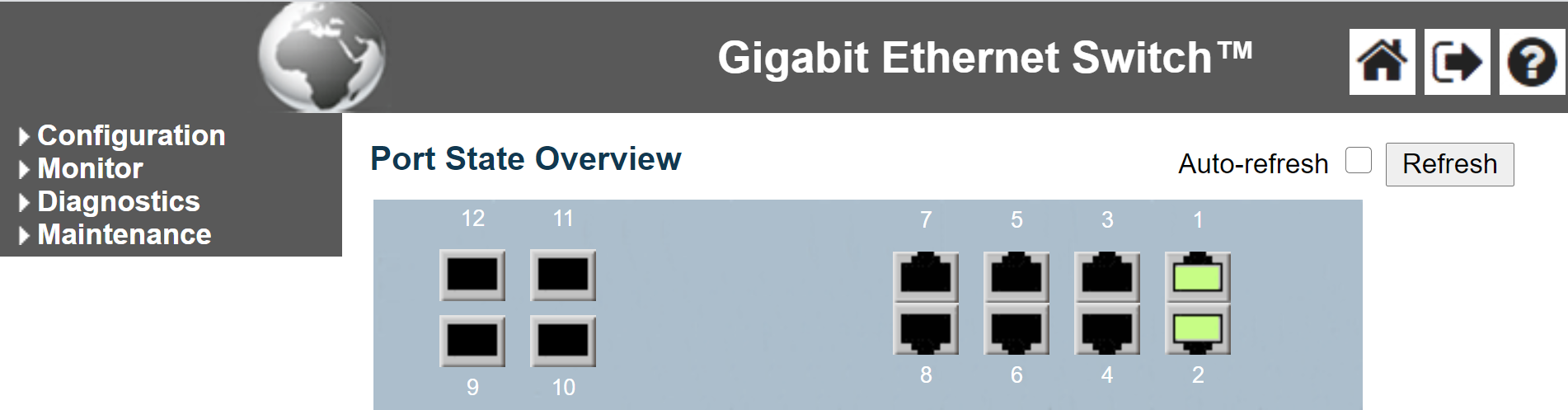

Management Software

2.5G L2 Managed Industrial PoE Network Switch Support ERPS MSTP Ring Din Rail
  1. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  2. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  3. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  4. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  5. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  6. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL
  7. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  8. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  9. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  10. Support IGMP agent report, MLD snooping

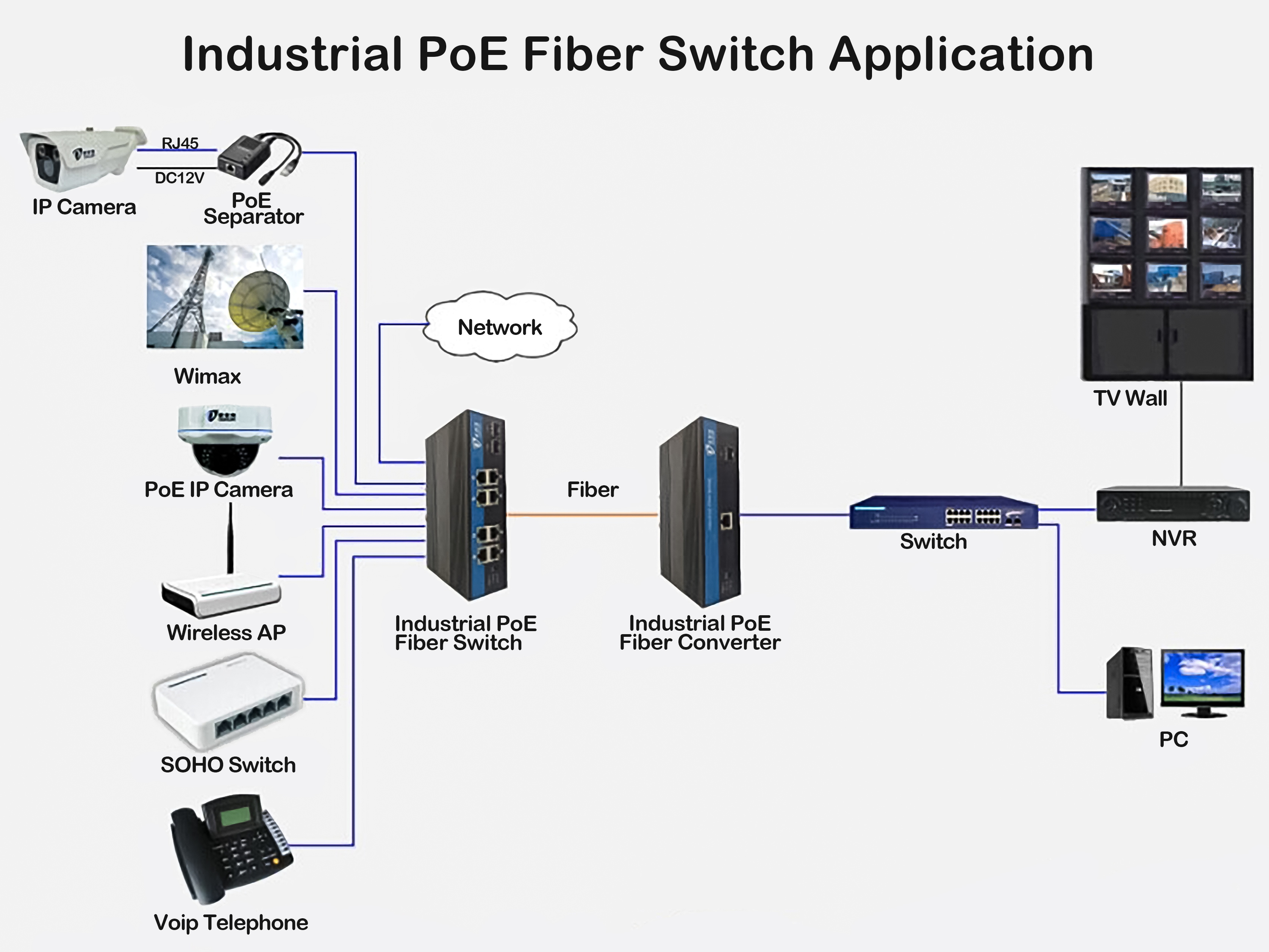

Application of Managed Network Switch
2.5G L2 Managed Industrial PoE Network Switch Support ERPS MSTP Ring Din Rail

OEM/ODM

We are fully connected with our customers, even if just for a single purchase. It starts from the promise of professional products and services, but our work goes far beyond. It is not only fiber optic connection, but also human connection.

The Customer information will be highly confidential, and relevant cooperation information will not be leaked to a third party without the customer’s permission.

OEM and ODM service are optional. OLYCOM can provide product with customer LOGO and will do our best to meet clients requirements.

2.5G L2 Managed Industrial PoE Network Switch Support ERPS MSTP Ring Din Rail

2.5G L2 Managed Industrial PoE Network Switch Support ERPS MSTP Ring Din Rail
